16 inch arca swiss type rail 7/8 thick 4 kirk markins wimberley rrs acratech
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Compatible Brand | For Arca-Swiss |
| Material | Aluminum |
| MPN | G022-16 |
| Brand | Hejnar Photo |
| Type | Arca Type Rail |
| Manufacturer Warranty | 1 Year |
| Item Height | 0.875 |
| Model | G022-16 |
| Compatible Series | For Fujifilm X |
| Features | Quick Release |
| Country/Region Of Manufacture | United States |
| Item Width | 1.5 |

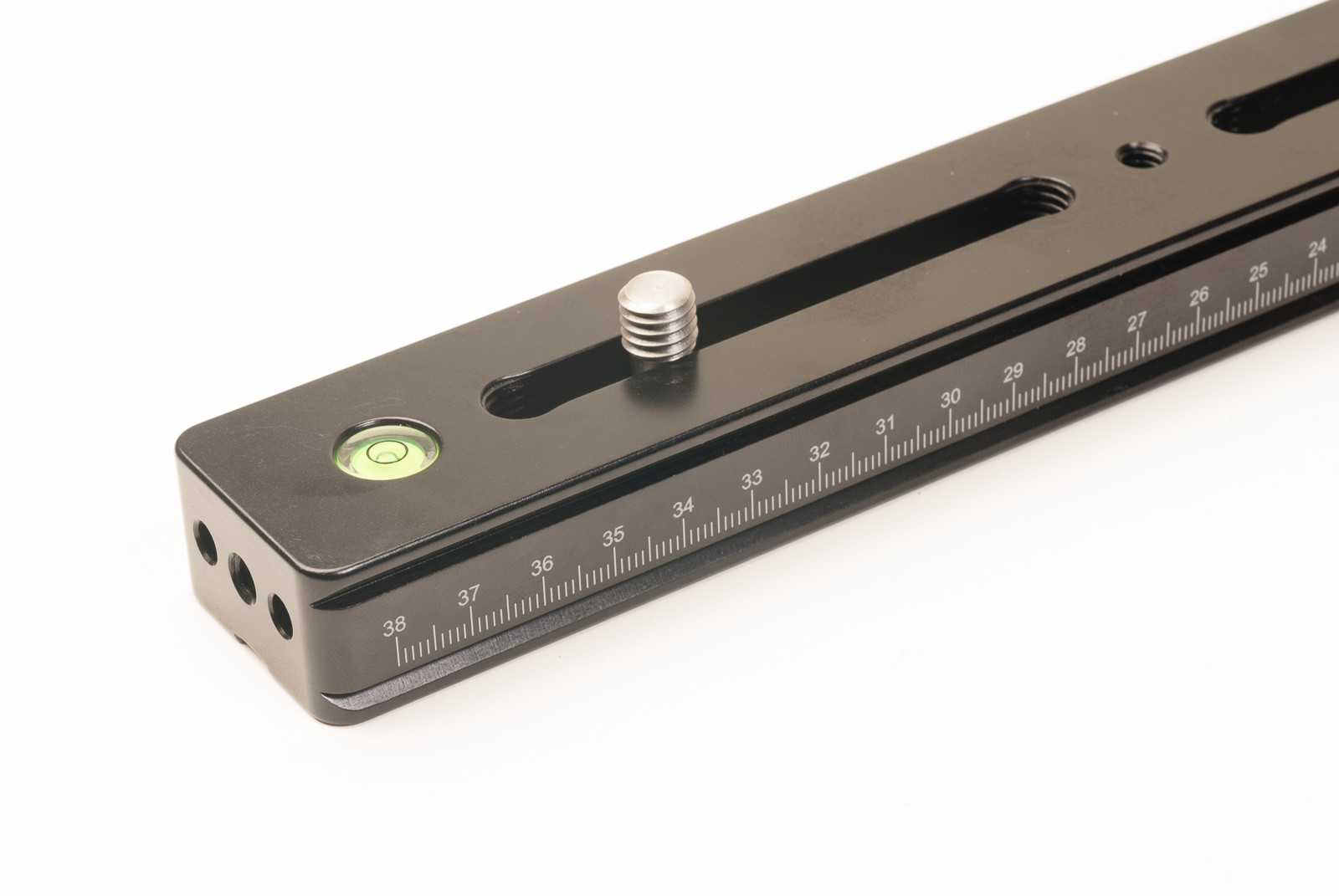

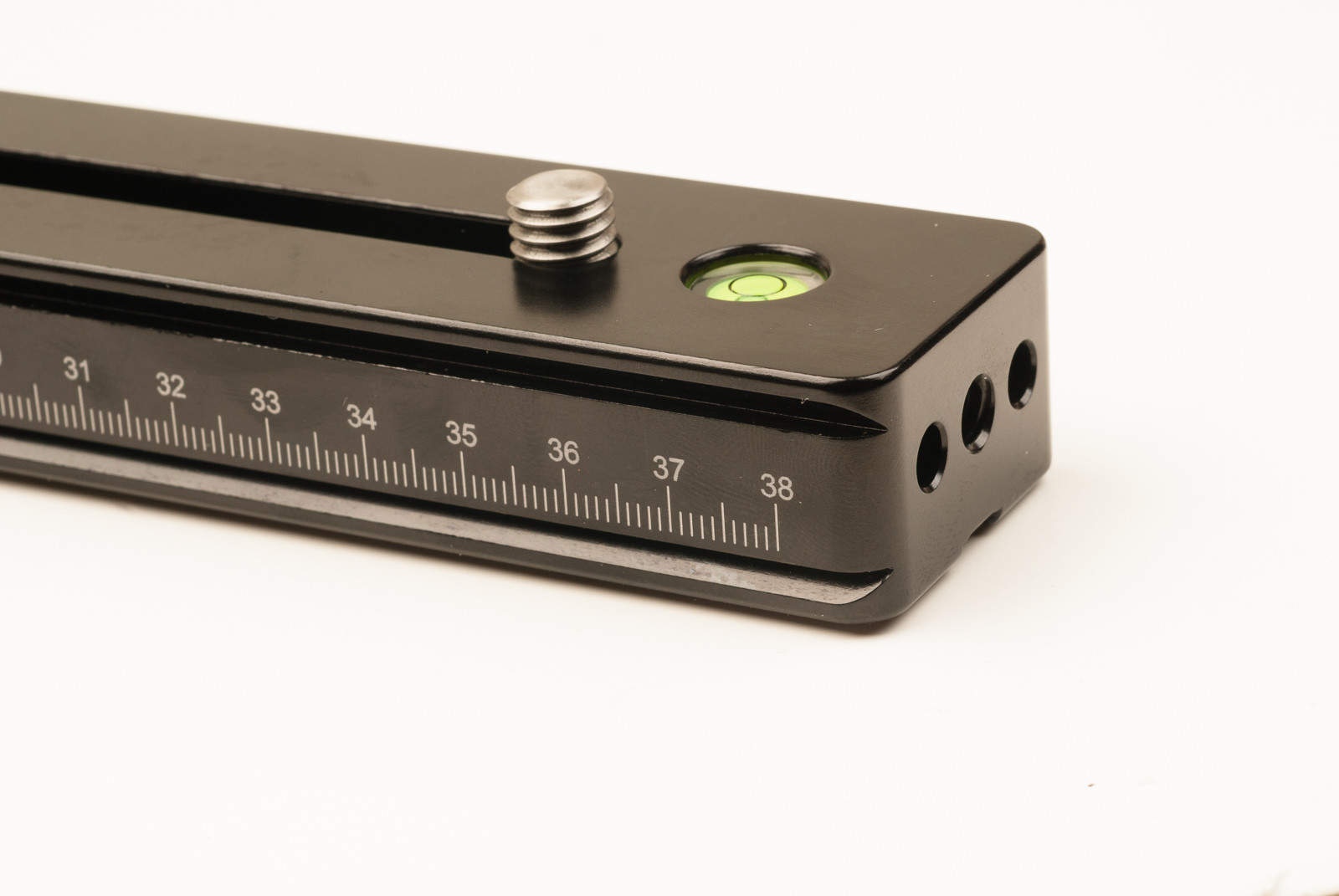

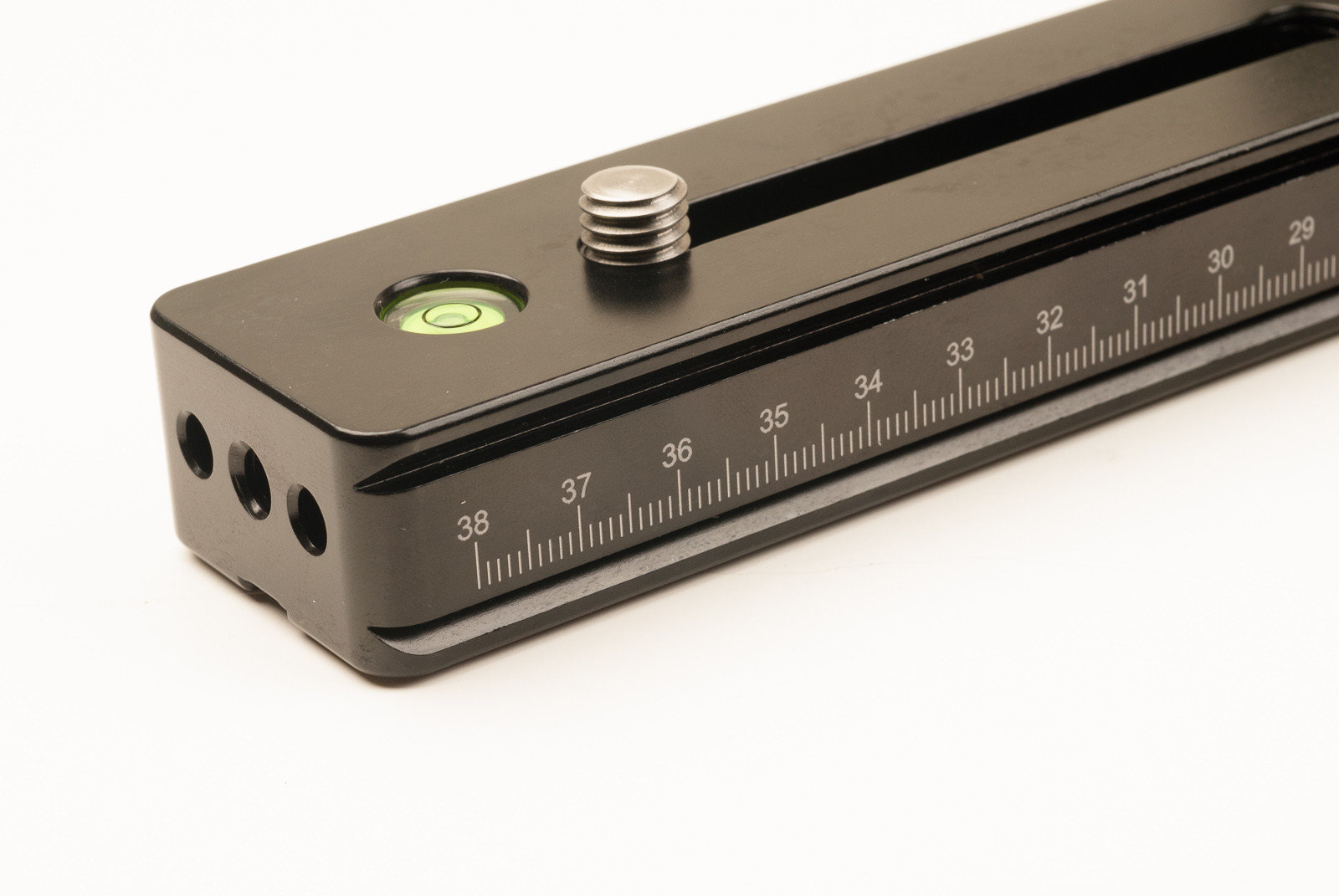

Part Number # G022-16Product Description: New Hejnar Photo Quick Release heavy duty 16.00 inch rail 7/8 thick (22.3mm)rail with 3/8 captive style slots and build in spirit level. Engraved metric scale on each side for references. It is the best quick release system for tripods and monopods when combined with Arca style ball head and clamps. This plate is designed to work with variety of ARCA TYPE quick release systems. It can be used for lens support , nodal slide, lens plate Compatible with:Markins including level release clampReally Right Stuff, including level release plate.Arca SwissWimberleyKirkPhoto ClamFoba Vanguard ABH Series Ball Heads (ABH is Vangaurds only Arca-Compatible series)Custom BracketsJobu DesignsAcratechOther Arca swiss type products Specification:16.00 inch long1.5 inch wide7/8 inch thick.Weight 18 oz (511g).Metric scale on each sideHole in front for lens support or other accessories. (1/4-20 tap hole plus two anti twist dowel pin holes )Three captive style slots for 3/8-16 screws ( three provided)Plate incorporates a double-dovetail.Two safety stops. This prevents free fall when the clamp is not fully closed. (M3 screws)Precision C.N.C. machined from 6061-T6 AluminumStainless steel hardware.Black hard coat anodized surfaceMade in USATwo 1/2 inch screws. Screw will be about 0.3 above plate surface. If you are planning of using plate with blind hole please check dept of it. You may need shorter screw.Auction Includes:One 16.00 inch plate.Three 3/8-16 inch captive style screw.Two M3 screws attached to the plate.Hex key for M3 screw.Shipping Information:Free ShippingTracking information provided. USA Costumers please note that USPS packages may travel much longer than the estimated delivery time and tracking information is not always updated daily. If your order is time sensitive, you need daily tracking update please use FedEx, UPS or Express Mail as delivery service during checkout.
