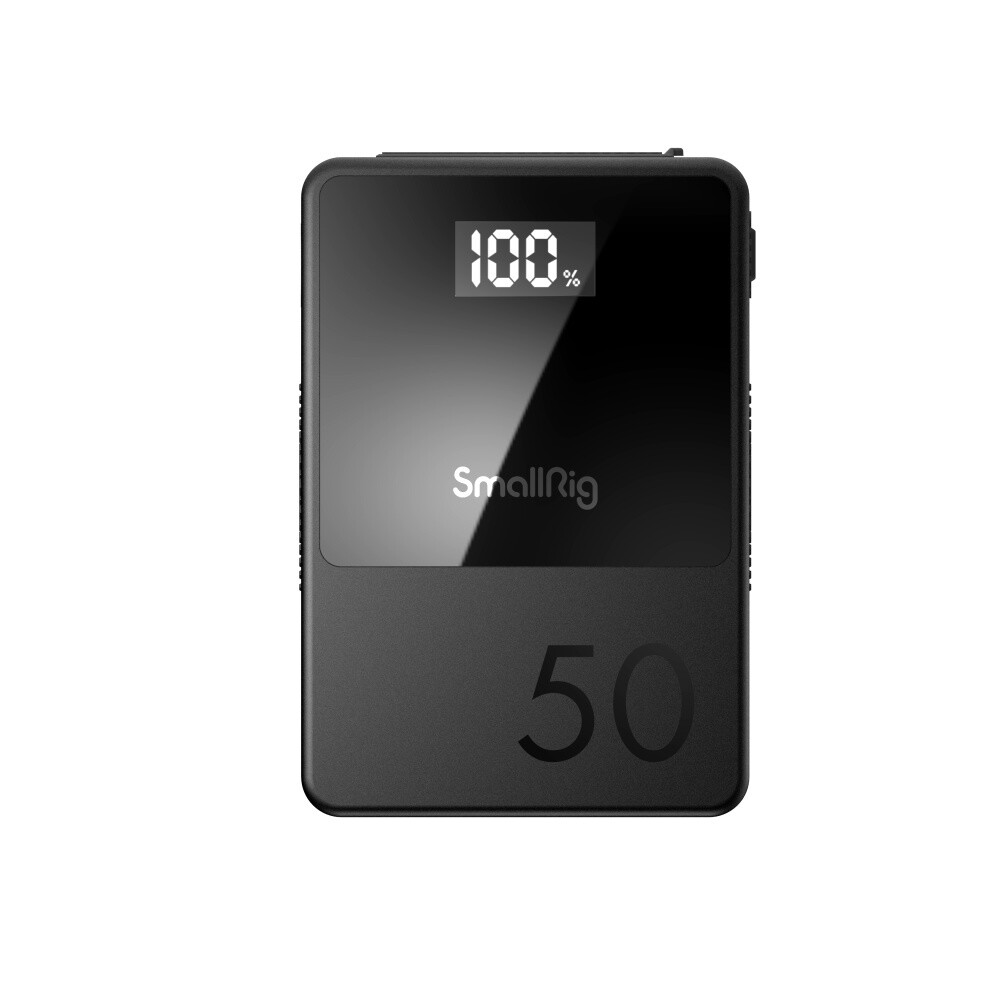

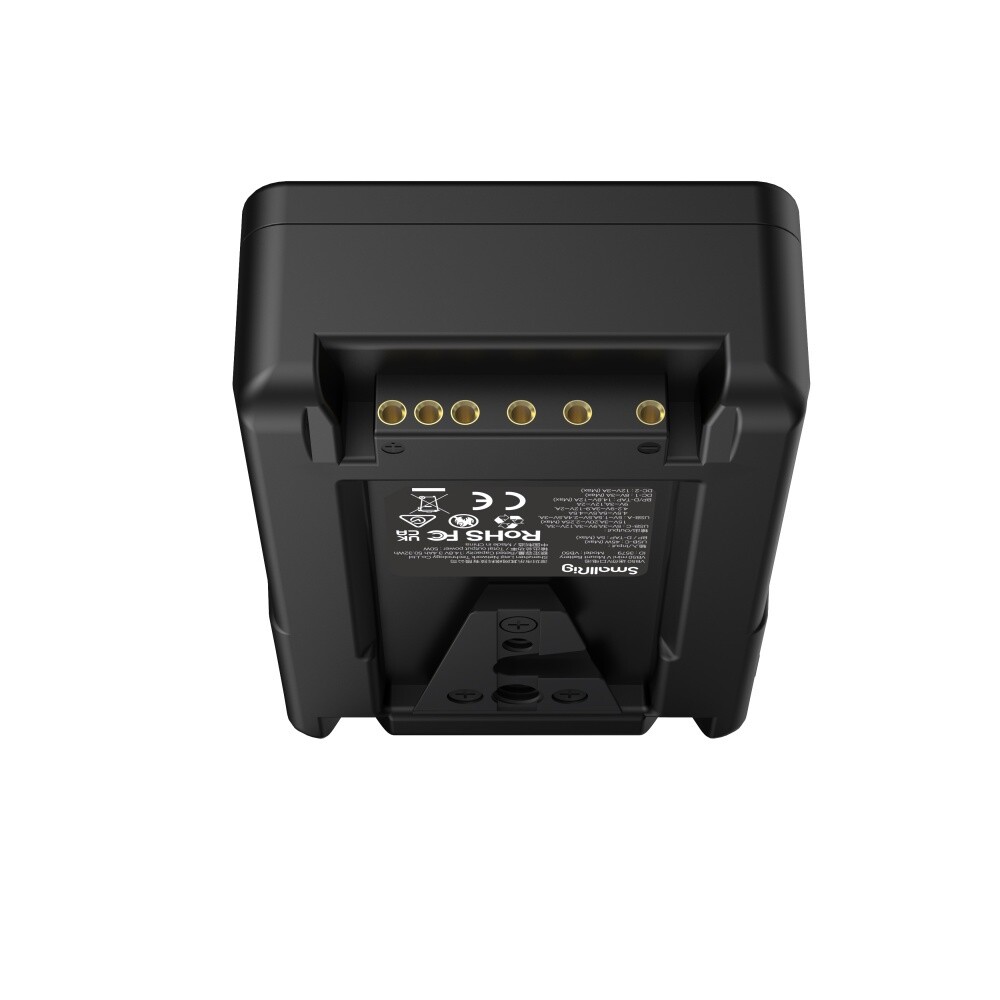

SmallRig VB50 mini V Mount Battery 50WH OLED Display for Camera Camcorder 3579
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| To Fit | Camcorder |
| Features | Compact and lightweight |
| Model | 3579 |
| Country/Region Of Manufacture | China |
| Material | Fireproof PC |
| Battery Capacity | 50 Wh |
| Chemistry | Lithium-Ion |
| Output Voltage | 14.8 VDC |
| Maximum Load | 12 A |
| USB Output | 5 V |
| MPN | 3579 |
| Item Length | 4.21 in |
| Chemical Composition | Li-Ion |
| Capacity | 3400 mAh |
| Item Height | 1.33 in |
| Item Width | 2.87 in |
| Compatible Brand | Universal |
| Brand | SmallRig |
| Type | Mini V-Mount Battery |
| Item Weight | 11.64 oz |
Key Features: 50Wh Lithium-Ion V-Mount Battery Supports up to 12A Draw 14.8V D-Tap Output USB Type-A Output, 2 x DC Barrel Outputs USB Type-C Input/Output D-Tap & USB Type-C Fast PD Charging Ultracompact, Travel-Friendly Size🛒Brand Outlet📷Shop by Camerafor Sonyfor Nikonfor Canonfor FUJIFILMfor Panasonic📸AccessoriesMounting BracketHandleHDMI Cable&Clamp🎥Camera Tripod🔋Power Solution📹Stabilizer Accessories💪Shoulder Rig💡Light📱Phone AccessoriesAbout this item-VB50 V Mount BatteryHigh Capacity Battery: The SmallRig VB50 V-mount battery has a high output power of 3400mAh (50Wh/14.8V) for longer battery life during lengthy videography and photography projects. This makes it an ideal power backup solution for photographers and filmmakers. If you require a higher capacity battery, we recommend the VB99 99Wh V-mount battery or the VB155 155Wh V-mount battery.Rich Interface: With USB-C, USB-A, DC 5.5x2.1mm 8V, DC 5.5x2.5mm 12V, BP and D-TAP ports, this V-mount battery is highly versatile and can power multiple devices simultaneously. It can be used to power DSLR cameras, camcorders, monitors, smartphones, wireless video transmitters, tablets and laptops. Additionally, it features a 1/4"-20 and 3/8"-16 threaded hole on the V-lock, allowing it to be secured with a ball head or other clamp.Bi-directional 45W PD Fast Charging: The SmallRig VB50 V-mount battery has a built-in BMS smart chip that supports multi-protocol fast charging (such as PD/QC/SCP/PPS/APPLE-2.4A) and high power USB-C bi-directional PD fast charging up to 45W. This allows for faster charging of your devices.Mini and Portable V-mount Battery: This palm-sized battery measures 4.21x2.87x1.33 inches and weighs only 0.72 lbs. It is approximately 30% smaller than traditional V-mount batteries and can be easily held in one hand. It is an excellent choice for travelers. The OLED screen provides information about the battery's operating status.Safe and Reliable: The V-mount battery is designed with short circuit, over-temperature, over-voltage, over-current, over-charge and over-discharge protection. It is made of high-quality, fireproof ABS and PC materials with a frosted finish, ensuring durability and a comfortable grip.Note: 1. When charging the camera, if it is not connected, turn off the camera and unplug all cables, unplug and reinsert the camera's battery, and then plug in the cables again to charge. 2. When USB-A and USB-C are discharged simultaneously, the battery output is 5V/3A, and when USB-C is charged and USB-A is discharged, the battery output is 5V/3A. 3. The power button is only used to wake up the screen and check the battery condition, it cannot cut off the battery. In the Box: User Manual × 1 Parameters： ItemsParametersMaterialFireproof PC Capacity14.8V 3.4Ah 50WhRated PowerDischarge: 50W Charge: 45WV Mount / D-TAP Input5A (Max)V Mount / D-TAP Output14.8V / 12A (Max)USB-A OutputSupports QC2.0 / QC3.0 / AFC / FCP / SCP / DCP-1.5A / APPLE-2.4AQC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V / 2AQC3.0: 4.2-9V / 3A, 9-12V / 2ASCP: 4.5V / 5A, 5V / 4.5ADCP-1.5A: 5V / 1.5AAPPLE-2.4A: 5V / 2.4AUSB-C Input / Output Input 45W (Max)Output 45W (Max)Supports PD3.0 / QC2.0 / QC3.0 / PPS / AFC/ FCP / SCP / DCP-1.5A / APPLE-2.4APD3.0: 5V / 3A, 9V / 3A, 12V / 3A, 15V / 3A, 20V / 2.25AQC2.0 / AFC / FCP: 5V / 3A, 9V / 3A, 12V / 2AQC3.0: 4.2-9V / 2A, 9-12V / 2ASCP: 4.5V / 5A, 5V / 4.5ADCP-1.5A: 5V / 1.5APPS: 3.3-16V / 3AAPPLE-2.4A: 5V / 2.4ADC1 Output8V / Max3ADC2 Output12V / Max3ACutoff Voltage11VOptional Charging Method16.8V D-TAP charger, USB-C charger such as GaN charger with PD fast charging tech (up to 45W) Product Dimensions107.0 × 73.0 × 34.0 mmNet Weight330 g ± 10 gPackage Dimensions147.0 × 114.0 × 57.0 mmGross Weight490 g ± 10 g Note1. Please keep it clean, dry area, and away from corrosive substances to reduce the risk of short circuits.2. Please check its battery life regularly in case you need it anytime anywhere.3. If the battery is left unused for a long time, please charge it to about 70% every three months and put it in a dry and ventilated environment for a longer lifespan.4. Working temperature: -10℃- 45℃ (14℉ - 113℉), Storage temperature:One month: -20℃ - 60℃ (-4℉ - 140℉)Three months: -20℃~45℃ (-4℉ - 113℉)One year: -20℃~20℃ (-4℉ - 68℉)Reference storage temperature/humidity:temperature: 20℃±5℃humidity: 60±15%5. It is normal for the battery to heat up slightly during charging or using.6. When using the D-TAP connector, please distinguish the positive and negative terminals, and do not reverse the battery.7. It’s normal that for long time storage the battery will lose some power cause it has self-consumption.8. Do not exceed its rated output when powering up other devices.9. Keep it away from water or fire when using.10. Please avoid dropping or crushing.11. Children can only use it under adult supervision. From the BrandOn Aug 6, 2024 at 01:09:06 PDT, seller added the following information:
